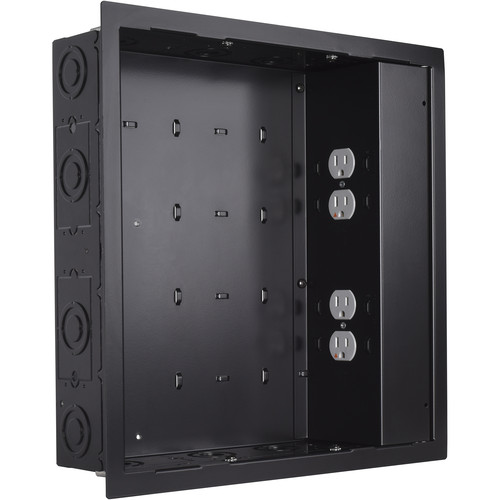

Chief PAC526 In-Wall Storage Box with 4-Receptacle Filter & Surge Protector (Black)
EAN: 841872167077
Hide your wiring and compact A/V equipment discreetly with the black Chief PAC526 In-Wall Storage Box with 4-Receptacle Filter & Surge Protector. It has four surge-protected and EMI-filtered outlets pre-installed to help simplify your installation. It is rated for 125 VAC, 60 Hz, 15A and is designed for use with the Chief PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and FUSION wall mounts.
In-Wall Storage Box Features
Surge & Filter Module
EAN: 841872167077
Hide your wiring and compact A/V equipment discreetly with the black Chief PAC526 In-Wall Storage Box with 4-Receptacle Filter & Surge Protector. It has four surge-protected and EMI-filtered outlets pre-installed to help simplify your installation. It is rated for 125 VAC, 60 Hz, 15A and is designed for use with the Chief PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and FUSION wall mounts.
In-Wall Storage Box Features
- Pre- and post-construction installation options
- Drywall- and stud- mountable
- Knockouts for single-gang outlets and 1.25 , 1 , and 0.5 conduits
- Integrated zip-tie anchor points
- Landscape/portrait installation
- Stores a variety of A/V components
- Paintable flange to blend in nearly any environment
Surge & Filter Module
- Non-volatile spike protection with LED power indicator
- Non-sacrificial, multi-stage technology by SurgeX
- Non-current-limiting design passes full power on a regular circuit redundant protection circuits
- Engineered to improve the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes, and electronic noise events that can cause gear degradation and downtime
- Line filter helps reduce common and differential mode noise by up to 40 dB
- Ferrite toroid-based EMI filter
- Designed to withstand up to 240 VAC continuous without damage or loss of protection
Chief PAC526 Specs
| Compatible Mounts | Chief PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and FUSION wall mounts |
| Number of Outlets | 4 |
| Load Capacity | 10 lb / 4.5 kg |
| Surge Protection | Type 3 Surge Protective Device (SPD) |
| Voltage Protection Rating | L-N, N-G: 600 V L-G: 800 V |
| Maximum Continuous Current | 240 V |
| Nominal Discharge Current | 3 kA in |
| Short Circuit Rating | 5 kA |
| Certification | UL 2416 Listed for installation of A/V, IT, & communication technology equipment |
| Voltage Rating | 125 VAC, 60 Hz, 15 A |
| Power Output | 15 A, 1875 W continuous |
| Power Consumption | <0.5 W |
| Max Ambient Temp | 104°F / 40°C |
| Overall Dimensions (W x H x D) | 15.4 x 15.51 x 3.88" / 391 x 34 x 98 mm |
| Weight | Not specified by manufacturer |
In the Box
- Chief PAC526 In-Wall Storage Box with 4-Receptacle Filter & Surge Protector (Black)
- Installation Hardware
- 2 Years Manufacturer Warranty
