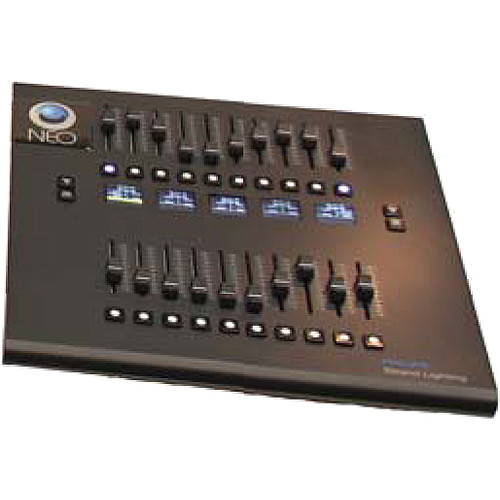

Strand Lighting NEO Console Submaster Wing
The NEO Console Submaster Wing from Strand can be used to provide additional submasters, depending upon model, to your NEO lighting control console. The interconnection between each wing and the control console is via a USB connection and can be powered either directly from a NEO console or plugged directly into a common power outlet through an optional power supply.
Submaster Wing Attributes
The NEO Console Submaster Wing from Strand can be used to provide additional submasters, depending upon model, to your NEO lighting control console. The interconnection between each wing and the control console is via a USB connection and can be powered either directly from a NEO console or plugged directly into a common power outlet through an optional power supply.
Submaster Wing Attributes
- Twenty non-motorized submasters (2 rows of 10)
- Twenty backlit bump buttons (one per fader)
- Page up and down backlit buttons for independent paging
- Five color LCD displays for fader identification
- USB connectivity to a NEO Lighting Control Console
- USB communication daisy chain between each wing
- Power input and output connections on each wing (power daisy chain) - powered via the console or optional power supply (5 power cable supplied with unit for console connection)
- A maximum of three wings in total can be connected to each NEO Lighting Control Console
- Kensington lock slot at back of unit
- 1 x XLR port for a console light (sold separately)
Strand Lighting 91004 Specs
| Security | Kensington lock slot |
| Connectivity | 1 x USB 2.0 Type-B, input from NEO Lighting Control Console 2 x USB 2.0 Type-A, for communication with additional optional wings Power input, from console via included cable or from optional power supply Power output, for additional optional wings XLR port for optional console light |
| Controls | 20 x Non-motorized submasters (2 rows of 10) 20 x Backlit bump buttons (one per fader) Page up and down backlit buttons |
| Displays | 5 x color LCDs |
In the Box
- Strand Lighting NEO Console Submaster Wing
- Dust Cover
- USB Cable (5` / 1.5 m)
- Power Cable (5` / 1.5 m)
- Quick Start Guide
- 2-Year Manufacturer Warranty
