SPOTS Gaffers Control v.2 DMX Console with SKYNODE Starter Kit
EAN: 810001722494

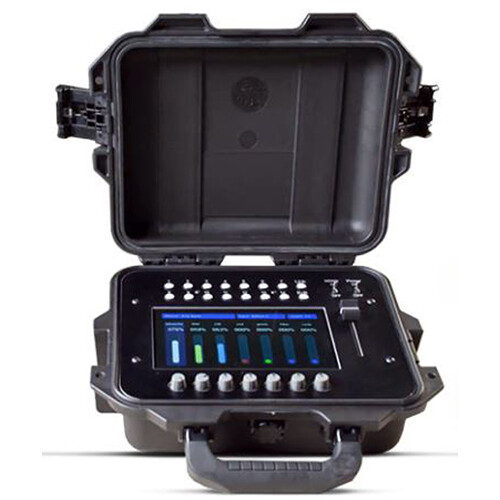

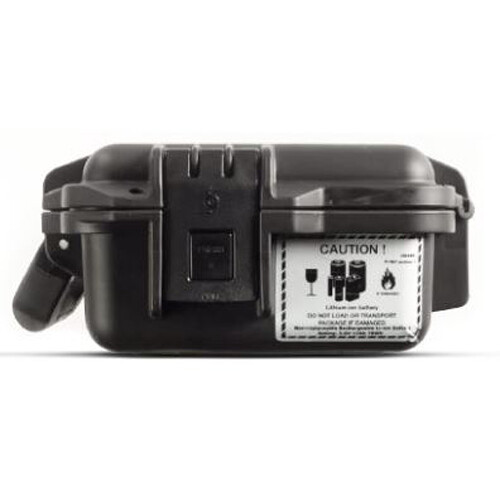

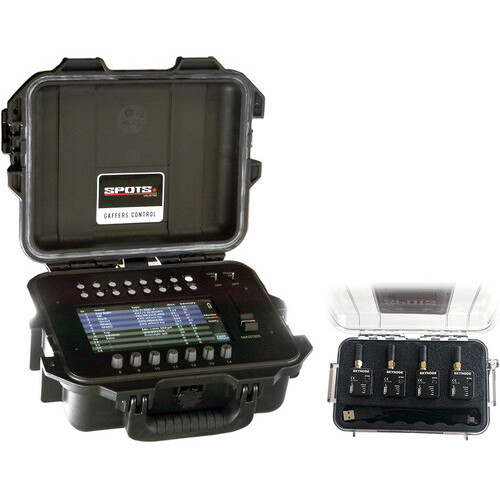

With a 7 touchscreen, 10-hour lithium-ion battery, and an onboard LumenRadio transmitter, the Gaffers Control v.2 DMX Console with SKYNODE Starter Kit is a compact system for wireless control of devices with LumenRadio CRMX receivers in the field. The unit is custom installed in a water-resistant, hard polypropylene StormCase that measures 11.8 x 9.8 x 4.7 and weighs just 6 lb. This kit includes four Cinelex SKYNODE USB0-powered wireless DMX receivers for lights that do not have wireless receivers built-in.
Benefits
SKYNODE Starter Kit

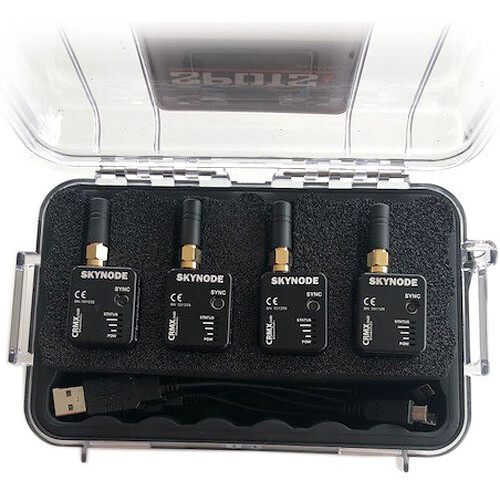

Includes four Cinelex SKYNODE USB powered wireless DMX receivers. SKYNODEs combine plug-and-play convenience with a quick setup using LumenRadio protocol. They draw power from USB-A port using the included jumpers and connect to your fixture via 5-pin XLR connector. SKYNODE is the compact and convenient solution for making your favorite DMX-capable fixture wireless and is specially designed for effortless integration with ARRI SkyPanels.
Integrated DMX Library
Compatibility
CRMX-compatible devices by LumenRadio for lights with CRMX receivers:
EAN: 810001722494
With a 7 touchscreen, 10-hour lithium-ion battery, and an onboard LumenRadio transmitter, the Gaffers Control v.2 DMX Console with SKYNODE Starter Kit is a compact system for wireless control of devices with LumenRadio CRMX receivers in the field. The unit is custom installed in a water-resistant, hard polypropylene StormCase that measures 11.8 x 9.8 x 4.7 and weighs just 6 lb. This kit includes four Cinelex SKYNODE USB0-powered wireless DMX receivers for lights that do not have wireless receivers built-in.
Benefits
- All-in-one DMX console in StormCase casing
- 7 capacitive touchscreen 800x480 pixels
- Integrated CRMX LumenRadio transmitter
- Integrated lithium-ion 70Wh battery
- 28 addressable banks / 512 DMX addresses
- 6 recordable scenes
- Scenes can be easily controlled and adjusted in the cue page with individual fade times
- Scenes can be played in a loop
- Max 256 steps in a look up (instead of 200 steps)
- Intensity channels also get 256 steps (instead of 101)
- Firmware and library updates with USB stick
- Possibility to save shows on a USB stick
- Master setting via linear potentiometer
- Parameter setting via touchscreen or buttons
- DMX outputs on 5-pin XLR
- Battery charge lasts up to 10 hours
SKYNODE Starter Kit
Includes four Cinelex SKYNODE USB powered wireless DMX receivers. SKYNODEs combine plug-and-play convenience with a quick setup using LumenRadio protocol. They draw power from USB-A port using the included jumpers and connect to your fixture via 5-pin XLR connector. SKYNODE is the compact and convenient solution for making your favorite DMX-capable fixture wireless and is specially designed for effortless integration with ARRI SkyPanels.
Integrated DMX Library
- ARRI
- BB&S
- Outsight Creamsource
- Cineo
- DMG
- Astera
- Quasar Science
- Carpetlight
- Litegear
- Kino Flo
- Litepanels
- Dedolight
- Alladin
- Exalux
Compatibility
CRMX-compatible devices by LumenRadio for lights with CRMX receivers:
- ARRI S360
- Kino Flo
- Litepanels Gemini
- DMG Lumiere MIX
- Cineo
- Litegear
- Alladin
- Outsight Creamsource Sky
- Carpertlight
- Astera
SPOTS Gaffers Control V.2 Specs
Display
| Panel Type | TFT LCD |
| Size | 7" |
| Resolution | 800 x 480 |
| Touchscreen | Yes |
Battery
| Battery Chemistry | Lithium-Ion |
| Battery Capacity | 70 Wh |
Power
| Power Consumption | 15 W |
Physical
| Color | Black |
| Dimensions | 11.8 x 9.8 x 4.7" / 30 x 24.9 x 11.9 cm |
| Weight | 6 lb / 2.7 kg |
Packaging Info
| Package Weight | 9.49 lb |
| Box Dimensions (LxWxH) | 12.9 x 12.7 x 11.9" |
In the Box
- SPOTS Gaffers Control v.2 DMX Console with SKYNODE Starter Kit
- 4 x Cinelex SKYNODE Wireless DMX Receiver
- Small Pelican Case for SKYNODEs
- 2-Year Manufacturer Warranty
