PSC Breakaway Cable for Sound Devices 633 with Timecode Out (25 )

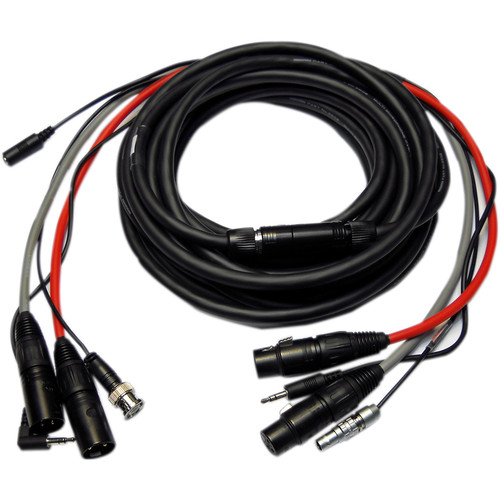

The 25 Breakaway Cable from PSC is an umbilical cable which connects the Sound Devices 663 to most video cameras. This cable features a 3.5mm stereo connector, two 5-pin Lemo connectors, and a 3-pin female XLR on one end and a BNC connector, two 3.5mm male stereo connectors, and two 3-pin male XLR cables on the other. It comes complete with an 8-pin Neutrik breakaway connection at the camera end, which allows the camera-end cable fan out to remain connected to the camera. This allows you to pull on one disconnect connection to release the camera from the umbilical cable. This cable provides left and right channel audio from the 633 to the camera as well as an audio confidence return line. In addition, there is a timecode connection, allowing timecode to be synced between the 633 and the camera.
The 25 Breakaway Cable from PSC is an umbilical cable which connects the Sound Devices 663 to most video cameras. This cable features a 3.5mm stereo connector, two 5-pin Lemo connectors, and a 3-pin female XLR on one end and a BNC connector, two 3.5mm male stereo connectors, and two 3-pin male XLR cables on the other. It comes complete with an 8-pin Neutrik breakaway connection at the camera end, which allows the camera-end cable fan out to remain connected to the camera. This allows you to pull on one disconnect connection to release the camera from the umbilical cable. This cable provides left and right channel audio from the 633 to the camera as well as an audio confidence return line. In addition, there is a timecode connection, allowing timecode to be synced between the 633 and the camera.
PSC FPSC1091ITC Specs
| Compatibility | Sound Devices 663 |
| Breakaway Connection | Quick release Neutrik 8-pin Neutricon |
| Connector 1 | 3.5 mm phone jack stereo 5-pin Lemo 5-pin Lemo 3-pin XLR female |
| Connector 2 | BNC 3.5 mm phone jack stereo 3.5 mm phone jack stereo 3-pin XLR male 3-pin XLR male |
| Length | 25` (7.6 m) |
In the Box
- PSC Breakaway Cable for Sound Devices 633 with Timecode Out (25`)
