QSC LA 112 2400W Active 12 Line Array Loudspeaker (Black)
EAN: 684284086778
Audio professionals looking for a next-generation intelligent line array system will be impressed with the QSC LA 112, an active line array loudspeaker module featuring a brilliant combination of cutting-edge innovation, refined engineering, and unparalleled ease of use in an easy-to-deploy package, well suited for live venues, fixed installations, mobile entertainers, AV rental, and event production.
EAN: 684284086778
Audio professionals looking for a next-generation intelligent line array system will be impressed with the QSC LA 112, an active line array loudspeaker module featuring a brilliant combination of cutting-edge innovation, refined engineering, and unparalleled ease of use in an easy-to-deploy package, well suited for live venues, fixed installations, mobile entertainers, AV rental, and event production.

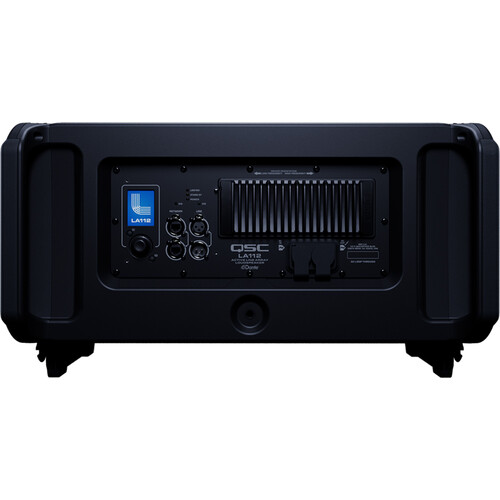

The LA112 utilizes a 2400W Class-D amplifier module, which delivers 1600W to the 12 woofer and 800W to the 1.75 compression driver for a combined frequency response of 58 Hz to 20 kHz with a max SPL of 136 dB. The rear panel features a 2.4 full-color display with rotary push-button for setting up speaker configurations and fine tuning the sound. There two 3-pin XLR connectors, powerCON True 1 I/O connectors, and two RJ45 etherCON network I/O connectors that are Dante and QSC SysNav compatible. The LA 112 includes a powerCON TRUE 1 power cord.
- Purpose-designed lightweight neodymium transducers deliver high undistorted SPL (136 dB peak)
- Energy efficient Class-D amplifier modules (2400W peak power) with Power Factor Correction and extremely low AC consumption
- Innovative QSC LEAF (Length-Equalized Acoustic Flare) waveguide provides defined uniform coverage and exceptional throw
- Intuitive single operator QSC RapidDeploy rigging technology with short-, medium-, and long-throw options, guarantees fast deployment without tools or additional hardware
- Onboard QSC AWARE (Automatic Wireless Array Recognition) system intelligence communicates essential setup information to the user via any loudspeaker s Rear User Interface (RUI) or QSC SysNav App
- QSC SysNav (System Navigator) App allows the user to easily design, configure, control, monitor and apply signal processing to individual loudspeakers, full arrays or groupings of both. The AIM (Array Installation Modeling) prediction tool lets the user visualize array coverage by positioning virtual loudspeakers and arrays in a scaled, graphical model of a venue or installation space
- Network solution includes digital audio-over-IP (Dante) for interoperability with other audio equipment and seamless control and monitoring integration into the Q-SYS Ecosystem via Q-SYS Inventory Extensions
- Acoustic Linear Phase (ALP) design provides complementary coherence between QSC loudspeakers deployed in the same audio system delivering a uniform listening experience across the entire venue
- Complemented by optional LS118, networked, single 18 active subwoofer
- Flown (up to six units with array frame), ground-stacked (up to three LA 112 over a single LS 118 subwoofer) or loudspeaker stand/pole mounting (up to two LA 112) deployment options.
- 6-year extended warranty with product registration
QSC LA112 Specs
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Line Array |
| Total Power Capacity | 2400 W |
| Amplifier Power Rating | LF: 1600 W HF: 800 W |
| Amplifier Class | Class-D |
Drivers
| HF Driver | 2 x 1.75" / 44 mm Compression Driver |
| MF Driver | None |
| LF Driver | 1 x 12" / 30.5 cm Woofer |
Performance
| Frequency Range | 53 Hz to 20 kHz -10 dB |
| Frequency Response | 58 Hz to 20 kHz -6 dB |
| Maximum SPL | 136 dB (Peak) |
| Coverage Angle | 90° H x 15° V |
Connectivity
| Audio I/O | 1 x XLR 3-Pin Line Input 1 x XLR 3-Pin Line Thru |
| Network I/O | 2 x RJ45 (Control/Dante/Network) In/Out |
| USB | None |
| Wireless Connectivity | None |
| Mobile App Compatible | Yes: iPadOS Only App Name: QSC SysNav *As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
Signal Processing
| Filters | High-Pass |
| Dynamic Processing | Limiter |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| AC Power I/O | 1 x powerCON Input 1 x powerCON Output |
| Current Consumption | 100 VAC: 1.8 A (1/8 Power) 120 VAC: 1.5 A (1/8 Power) 230 VAC: 1 A (1/8 Power) |
Physical
| Mounting | M10 Fly Point (Rear) 1 x Pole Socket (Dual Angle, Bottom) |
| Cooling | Convection |
| Environmental Protection | None |
| Construction Material | ABS, Metal Grille |
| Dimensions | 24.8 x 16.4 x 15.4" / 629.9 x 416.6 x 391.2 mm |
| Weight | 47.2 lb / 21.4 kg |
Packaging Info
| Package Weight | 47.2 lb |
| Box Dimensions (LxWxH) | 26.5 x 20.25 x 18.25" |
In the Box
- QSC LA 112 2400W Active 12" Line Array Loudspeaker (Black)
- powerCON True 1 Power Cord
- 6-Year Manufacturer Warranty
