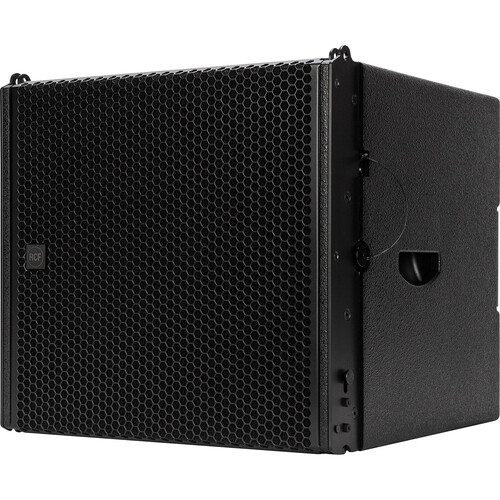

RCF HL 35-S Flyable 15 Passive Subwoofer
Audio engineers in need of bass complement for the HL 6 array system will be impressed with the RCF HL 35-S, a passive, flyable subwoofer that extends the bass response of full-range speakers suitable for a wide range of applications, including live sound reinforcement in clubs and music venues as well as touring bands and rental houses.
Designed for Installation
The passive architecture makes the HL 35-S one of the lightest 15 flyable bass modules on the market. Perfect for keeping the floor clear and maximizing the efficiency and coherence of the array. Combining it with robust rigging and a wide range of accessories, it s the perfect solution for installation in both sports arenas, corporate environments, and music venues. The HL 35-S provides sound pressure and clarity that can replace antiquated, oversized sound systems with improved acoustic performance.
Precision Transducers
Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and groundbreaking direct drive voice coil assemblies.
Cabinet & Mechanics

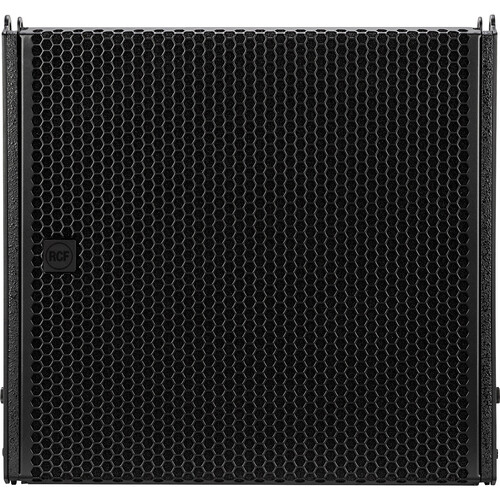

The hardware is designed for an easy and fast setup, completely compatible with the HL 6 rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.
Integrated Hardware
The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to extend the HL 6-A lower range with one or multiple HL 35-S modules. It can be used attached to the flybar, on the floor, or stacked with the HL 6 on top. The hardware is designed for easy and fast setup.
Audio engineers in need of bass complement for the HL 6 array system will be impressed with the RCF HL 35-S, a passive, flyable subwoofer that extends the bass response of full-range speakers suitable for a wide range of applications, including live sound reinforcement in clubs and music venues as well as touring bands and rental houses.
The HL 35-S requires a recommended 1800W amplifier to power the 15 woofer, which provides a 40 to 140 Hz frequency response and an SPL of 134 dB. The Baltic birch enclosure includes a steel front grille with a transparent-to-sound foam backing, which helps protect the transducer from dust. Integrated array mechanics allow for fast and easy deployment, while the M20 pole mount in the top section of the cabinet allows for ground stacking with a subwoofer pole.
At a Glance
- 1800W program power handling
- 134 dB max SPL
- 40 to 140 Hz frequency range
- 15 high-power woofer
- Baltic birch plywood cabinet
- Steel front grille with clothing
- M20 standard pole mount in the top section of the cabinet
- Two speakON connectors
Designed for Installation
The passive architecture makes the HL 35-S one of the lightest 15 flyable bass modules on the market. Perfect for keeping the floor clear and maximizing the efficiency and coherence of the array. Combining it with robust rigging and a wide range of accessories, it s the perfect solution for installation in both sports arenas, corporate environments, and music venues. The HL 35-S provides sound pressure and clarity that can replace antiquated, oversized sound systems with improved acoustic performance.
Precision Transducers
Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and groundbreaking direct drive voice coil assemblies.
Cabinet & Mechanics
The hardware is designed for an easy and fast setup, completely compatible with the HL 6 rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.
Integrated Hardware
The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to extend the HL 6-A lower range with one or multiple HL 35-S modules. It can be used attached to the flybar, on the floor, or stacked with the HL 6 on top. The hardware is designed for easy and fast setup.
RCF HL 35-S Specs
| Configuration | Passive Subwoofer |
| Enclosure Type | Bass-Reflex Line Array Subwoofer |
| Total Power Capacity | 900 W RMS 1800 W Program 3600 W Peak |
| System Impedance | 8 Ohms |
Drivers
| HF Driver | None |
| MF Driver | None |
| LF Driver | 1 x 15" / 381 mm Woofer |
| LF Voice Coil | 4" / 101.6 mm |
Performance
| Frequency Range | 40 Hz to 140 Hz -10 dB |
| Maximum SPL | 134 dB SPL (Peak) |
Connectivity

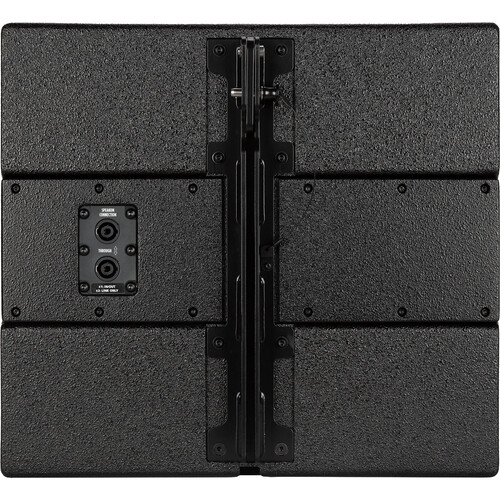

| Audio I/O | 1 x speakON Speaker Input 1 x speakON Link/Speaker Output |
Signal Processing
| Phase Adjustment | None |
Physical
| Mounting | 1 x M20 Pole Socket (Top) Integrated Rigging |
| Handles | 1 x Each Side |
| Construction Material | Plywood, Steel |
| Dimensions | 20 x 18.9 x 17.5" / 50.8 x 48 x 44.5 cm |
| Weight | 61.7 lb / 28 kg |
In the Box
- RCF HL 35-S Flyable 15" Passive Subwoofer
- 3-Year Manufacturer Warranty
