RCF TT 515-A Dual 5' 2000w Active 2-Way Speaker

RCF TT 515-A Dual 5 2000w Active 2-Way Speaker

Ideal for installed and portable professional applications, the RCF TT 515-A is a compact, professional active speaker well suited for live sound, portable PA, stage monitoring, and club applications. Built to provide crisp, high-definition sound for a variety of small to midsize venues, the TT 515-A is designed with a 100 x 70° rotatable horn for wide dispersion and is well suited to applications ranging from corporate meetings and conferences to theater performances and broadcast uses.

The integrated 2000W amplifier drives two 5 woofers and a 1 compression driver, which combine for a 70 Hz to 20 kHz frequency range and a maximum SPL of 127 dB. In addition to standard XLR input and output connectors, RDNet connectors offer you remote networked control over the system via computer. In addition, thermal and HF protection is also included to prevent damage to the speaker.

Fits in the Palm of Your Hand

• The two-channel 2000W (1000W RMS) amplifier is small, ultra-silent, and fanless.
• Producing a max SPL of 127 dB, it s perfect for 3D/immersive sound, nearfield systems, and productions that demand extreme sound quality.
• The rotatable 100x70 degree CMD horn reaches a wide area, perfectly matching the directivity of the woofers.
• The internal DSP has a whole range of protections for the transducers and includes special FiRPHASE and BMC processing to achieve coherent distribution of sound without phase distortion and deep, tight bass at any volume.

A Little Box with Superpowers

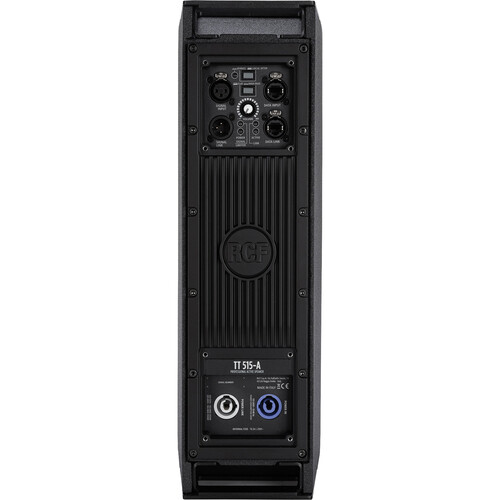

The amplifier integrates a low-noise 32-bit DSP circuit, controlled through the RCF proprietary RDNet network to easily handle soft clipping limiters, RMS limits, polarity, amplitude, timing, and equalization. All the settings, monitoring, and more advanced features are available inside the RDNet Networked Management software. The available control panel on the back adjusts volume, high-pass, and bypass. The regulated power supply guarantees full power from 100 to 260V. The amplifier is housed in a unique Vibrostop floating aluminum panel for extra protection during transportation.

Built for Everyday Use

Use it as a compact and powerful main system or to supplement a larger system. The waterproof cabinet is built in high-strength Baltic birch plywood coated with black, robust, and scratch-resistant polyurea paint. Attached to a solid machined aluminum structure at the back, the amplifier heat dissipation is efficient and the cabinet is sturdy and stiff. A strong powder coated metal grille protects the front, and an acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity.

Rig It Anywhere

• The only limit is your imagination. With multiple rigging accessories and the unobtrusive form factor of the cabinet, TT 515-A is suitable for a wide range of configurations including hanging, pole-, truss-, wall- or ceiling-mounting-at any angle in horizontal or vertical orientation. The rotatable waveguide (and rotatable logo) allows for perfect dispersion control at any position.
• The speaker s rigging is fast and easy, using the practical Quick Fit socket to easily install accessories such as the clamp mount, pole mount, horizontal brackets, or using the two M10 threads on top and bottom of the cabinet. You will always find a place for TT 515-A.

A Stunning Sound System

Pair the TT 515-A with the TT 808-AS subwoofer to extend the low-frequency range and create a powerful full-range main system with an incredibly small footprint. With multiple configuration options, the powerful DSP and RDNet remote management, there isn t a too big or too small venue.

Good Things Come in Small Packages

Uncompromising fidelity and power with TT+ sonic signature. This means you have perfect phase and frequency compatibility among all TT+ speakers, so you can serve up a breathtaking sonic experience in all your applications.

An Unobstructed Stage

Uncompromised sound without blocking critical sightlines. The ultimate flexibility for tight spaces, small stages, and small gigs with extreme portability. You can pack a full-range stereo system with two TT 515-A, two 808-AS subwoofers, poles, and cables in less than 200-liters volume.

Rotatable Constant-Directivity Waveguide

The 100x70° CMD horn that is easily rotatable in the field using only a screwdriver.

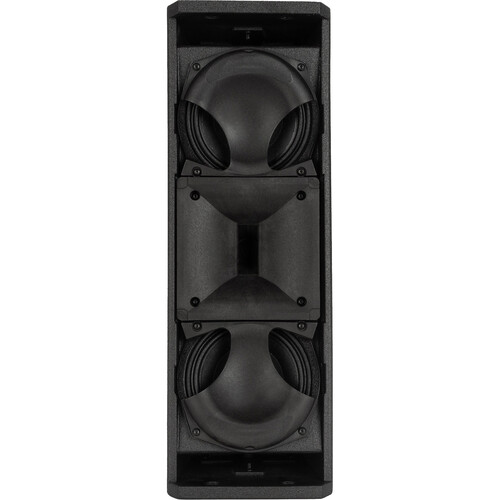

Precision Transducers

• Low frequency: Two 5 ? cone drivers on a custom-designed phase plug to enhance midrange efficiency and extend horizontal coverage, matching the waveguide dispersion for perfect coverage continuity around the crossover point.
• High frequency: The high-performance 1.75 titanium dome compression driver is fitted on a 100 x 70° rotatable constant-directivity waveguide. This special waveguide and high-frequency transducer design allow excellent control of directional characteristics. In difficult acoustic environments, intelligibility is significantly increased.

Bass Motion Control

• When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.
• The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

New Perspective on Linearity

• RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
• The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

RCF RDNet

RDNet is a robust management network and control platform for small, medium, and large arena-sized sound systems as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers-you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.
