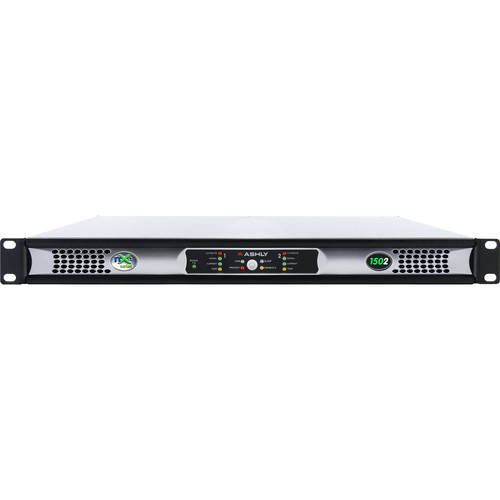

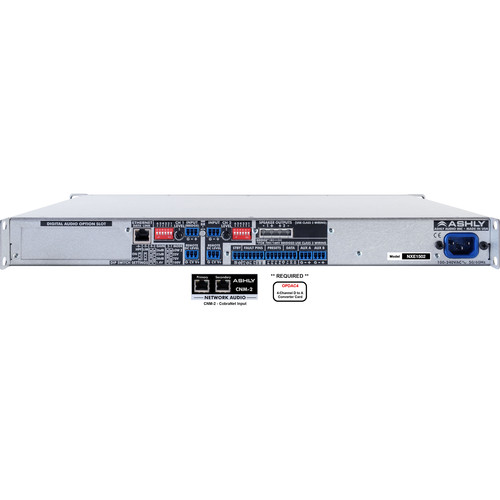

Ashly NXE Series 2-Channel Networkable Multi-Mode Power Amplifier with OPDAC4 & CNM-2 Cards (2 x 150W)
The Ashly NXE Series 2-Channel Networkable Multi-Mode Power Amplifier pre-installed with OPDAC4 internal 4-Channel DAC with selectable HPF and CNM-2 CobraNet Network Audio Interface cards. The Cobranet card enables access to digital audio networks at medium latencies (1.33 ms) over fast Ethernet. The amplifier is capable of driving 2, 4, and 8 Ohms loads at full power and offers a maximum rated output power of 150W per channel at 25V, 70V, and 100V modes. The amplifier comes with additional energy saving features such as Real-Time Clock (RTC), Event Scheduler, and GPIO control. The OPDAC4 card includes a software selectable high-pass filter that can be set for 80 Hz @ 12 dB/Oct, 400 Hz @ 6 dB/Oct, and Off.
The multi-mode output capability allows each individual amplifier output channel to be set for Low-Impedance, or Constant Voltage operation using DIP switches. The amplifier features a lightweight 1U designs with universal AC input SMPS for improved energy efficiency. Thanks to the Euroblock, and IEC connectivity, the power amplifier safely fulfills the requirements for installed sound applications.
Energy Star compliant
Consumes less than 1W in the automatic sleep mode
DC-voltage level control
Network, Serial, and Logic control via Ashly remotes (sold separately)
The Ashly NXE Series 2-Channel Networkable Multi-Mode Power Amplifier pre-installed with OPDAC4 internal 4-Channel DAC with selectable HPF and CNM-2 CobraNet Network Audio Interface cards. The Cobranet card enables access to digital audio networks at medium latencies (1.33 ms) over fast Ethernet. The amplifier is capable of driving 2, 4, and 8 Ohms loads at full power and offers a maximum rated output power of 150W per channel at 25V, 70V, and 100V modes. The amplifier comes with additional energy saving features such as Real-Time Clock (RTC), Event Scheduler, and GPIO control. The OPDAC4 card includes a software selectable high-pass filter that can be set for 80 Hz @ 12 dB/Oct, 400 Hz @ 6 dB/Oct, and Off.
The multi-mode output capability allows each individual amplifier output channel to be set for Low-Impedance, or Constant Voltage operation using DIP switches. The amplifier features a lightweight 1U designs with universal AC input SMPS for improved energy efficiency. Thanks to the Euroblock, and IEC connectivity, the power amplifier safely fulfills the requirements for installed sound applications.
Energy Star compliant
Consumes less than 1W in the automatic sleep mode
DC-voltage level control
Network, Serial, and Logic control via Ashly remotes (sold separately)
Ashly NXE1502 Specs
| Number of Channels | 2 |
| Output Power | 150 W @ 2, 4, and 8 Ohms |
| Dimensions | 19 x 1.75 x 14.54" / 482.6 x 44.45 x 369.3 mm |
| Weight | 12 lb / 5.44 kg |
In the Box
- Ashly NXE Series 2-Channel Networkable Multi-Mode Power Amplifier with OPDAC4 & CNM-2 Cards (2 x 150W)
- 5-Year Manufacturer Warranty
