Pyle Pro PTA1000BT Professional Stereo Power Amplifier with Bluetooth (500W/Channel @ 8 Ohms)
EAN: 842893142272
The PTA1000BT from Pyle-Pro is a professional-quality rackmount power amplifier with Bluetooth designed for installation applications. The amplifier can operate in stereo or bridged modes for terrific versatility. In addition to the stereo 1/4 , XLR, and 3.5mm inputs, the unit features a USB port and SD card slot for digital media playback and a Bluetooth input for wireless digital audio input. speakON and binding post outputs allow you to connect the amplifier to a wide variety of audio equipment.
The front panel features individual level control knobs and LED indicators for power, signal, clipping, protection, and volume level along with a LCD display and controls for digital media playback and the built-in FM radio. Internal dual-speed cooling fans with back-to-front airflow keep internal components running reliably, while protection circuitry prevents overheating and overloads. A ground-lift switch is provided to reduce hum caused by ground loops. The amplifier has a selectable operating voltage for worldwide use.
Rackmount design for easy installation in a standard equipment rack
Operates in stereo or bridged modes for terrific versatility

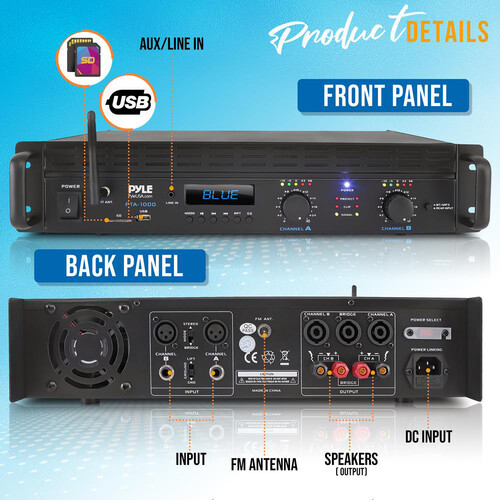

XLR and 1/4 inputs, along with speakON and binding post outputs allow you to connect the amplifier to a wide variety of audio equipment
Bluetooth 5.0 allows for wireless audio input at a distance up to 30
USB port, SD card slot, and 3.5mm AUX input + FM radio mode

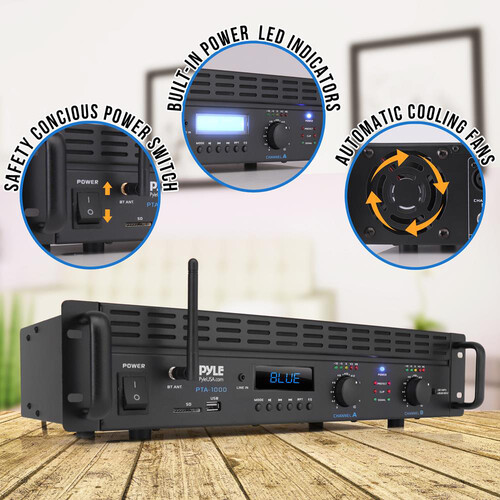

Front panel features individual level control knobs and LED indicators for power, signal, clipping, protection, and volume level
LCD screen and controls for digital media inputs along with 6 preset digital EQ effects
Internal dual-speed cooling fans with back-to-front airflow keep internal components operating smoothly
Built-in protection circuitry prevents overheating and overloads
A ground-lift switch is provided to reduce hum caused by ground loops
Selectable operating voltage for worldwide use
EAN: 842893142272
The PTA1000BT from Pyle-Pro is a professional-quality rackmount power amplifier with Bluetooth designed for installation applications. The amplifier can operate in stereo or bridged modes for terrific versatility. In addition to the stereo 1/4 , XLR, and 3.5mm inputs, the unit features a USB port and SD card slot for digital media playback and a Bluetooth input for wireless digital audio input. speakON and binding post outputs allow you to connect the amplifier to a wide variety of audio equipment.
The front panel features individual level control knobs and LED indicators for power, signal, clipping, protection, and volume level along with a LCD display and controls for digital media playback and the built-in FM radio. Internal dual-speed cooling fans with back-to-front airflow keep internal components running reliably, while protection circuitry prevents overheating and overloads. A ground-lift switch is provided to reduce hum caused by ground loops. The amplifier has a selectable operating voltage for worldwide use.
Rackmount design for easy installation in a standard equipment rack
Operates in stereo or bridged modes for terrific versatility
XLR and 1/4 inputs, along with speakON and binding post outputs allow you to connect the amplifier to a wide variety of audio equipment
Bluetooth 5.0 allows for wireless audio input at a distance up to 30
USB port, SD card slot, and 3.5mm AUX input + FM radio mode
Front panel features individual level control knobs and LED indicators for power, signal, clipping, protection, and volume level
LCD screen and controls for digital media inputs along with 6 preset digital EQ effects
Internal dual-speed cooling fans with back-to-front airflow keep internal components operating smoothly
Built-in protection circuitry prevents overheating and overloads
A ground-lift switch is provided to reduce hum caused by ground loops
Selectable operating voltage for worldwide use
Pyle Pro PTA1000BT Specs
Amplifier
| Number of Channels | 2 |

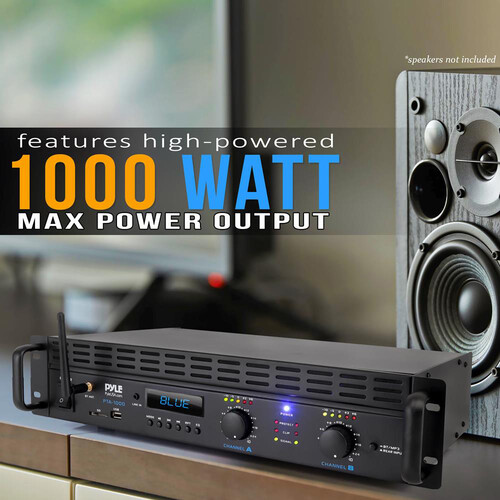

| Power Rating | 8 Ohms: 500 W per Channel 4 Ohms: 1000 W per Channel |
Performance
| Frequency Response | 20 Hz to 20 kHz ±0.2 dB |
| SNR | 102 dB |
| Distortion | Line Input: < 1% |
Signal Processing
| DSP | Yes |
| Crossover | Yes |
| Compressor | Yes |
| Limiting | Yes |
Connectivity
| Analog Audio I/O | 2 x XLR 3-Pin Female Input 2 x 1/4" TRS Female Input 3 x speakON 1-Pin Female Output 2 x Binding Post Pair 1-Pin Female Output |
| USB | 1 x USB-A (Audio) |
Power
| AC Input Power | User Selectable: 120 VAC, 50 / 60 Hz 220 VAC, 50 / 60 Hz |
| AC Power Connector | 1 x IEC |
Physical
| Display & Indicators | LED (Clip/Level/Power/Protect/Signal) LCD (Input) |
| Rackmount Size | 2 RU |
| Cooling | 2 x Fan (Variable Speed) |
| Dimensions | 19.1 x 3.5 x 9.8" / 48.5 x 8.9 x 24.9 cm |
Packaging Info
| Package Weight | 17 lb |
| Box Dimensions (LxWxH) | 20.5 x 12.8 x 8" |
In the Box
- Pyle Pro PTA1000BT Professional Stereo Power Amplifier with Bluetooth (500W/Channel @ 8 Ohms)
- Power Cable
- 2-Year Manufacturer Warranty
