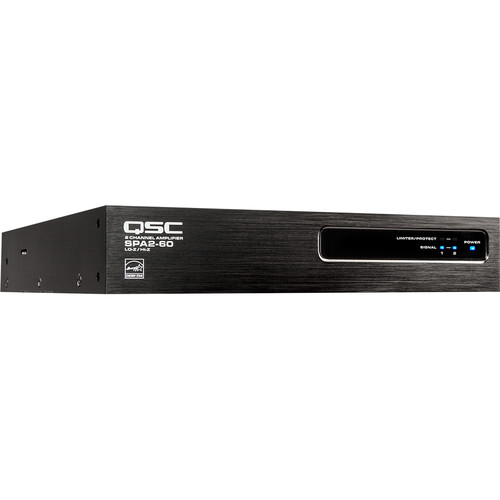

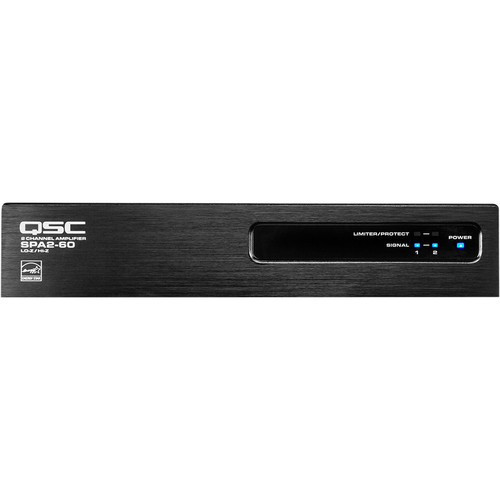

QSC SPA2-60 2-Channel Power Amplifier (60W)
EAN: 684284066275
The highly flexible QSC SPA2-60 2-Channel Power Amplifier is an advanced Class-D amplifier with Energy Star rated efficiency well suited for smaller installations including meeting rooms or BGM zones. The convection cooled amplifier is designed to conserve energy. An auto-ramp circuit ensures quiet and fast power up from standby when a signal is present and seamless power-down following 25 minutes of inactivity, dramatically reducing power consumption.
The rear panel utilizes Euroblock connectors for inputs and outputs as well as remote inputs. Each channel of the SPA2 provides 60W of power, while the bridge mode provides 200W into 4 or 8 ohms and 250W into 70/100V.
EAN: 684284066275
The highly flexible QSC SPA2-60 2-Channel Power Amplifier is an advanced Class-D amplifier with Energy Star rated efficiency well suited for smaller installations including meeting rooms or BGM zones. The convection cooled amplifier is designed to conserve energy. An auto-ramp circuit ensures quiet and fast power up from standby when a signal is present and seamless power-down following 25 minutes of inactivity, dramatically reducing power consumption.
The rear panel utilizes Euroblock connectors for inputs and outputs as well as remote inputs. Each channel of the SPA2 provides 60W of power, while the bridge mode provides 200W into 4 or 8 ohms and 250W into 70/100V.
- Provides up to 60W per channel into Low-Z loads at 4 and 8 Ohms
- Energy Star qualified SPA Series employ an efficient class-D design to conserve energy and reduce operational cost
- Provides up to 250W by bridging the output
- Rack-mountable 1 RU, half-rack width enclosure ”the SPA Series can be mounted in 1 RU, 1/2 rack space, and their clever joining brackets enable easy under table and wall mounting
QSC SPA Specs
| Number of Channels | 2 |
| Power Rating | 60 W per Channel 200 W Bridged |
| Amplifier Class | Class-D |
| Load Impedance / Voltage | 4 / 8 Ohms 70 / 100 V |
In the Box
- QSC SPA2-60 2-Channel Power Amplifier (60W)
- Power Cord
- Connector Pack
- Set of Rack-Mount Ears
- Set of Mounting Brackets
- 3-Year Manufacturer Warranty
