Grace Design m905 Analog Reference Monitor Controller (Black)
EAN: 823821090599

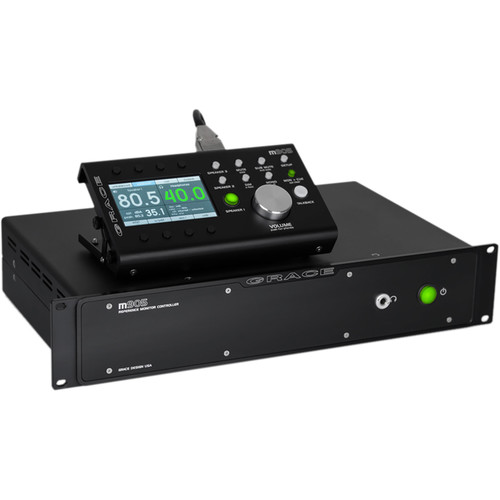

The black m905 Analog from Grace Design is a reference monitor controller designed to deliver mastering-quality monitoring to your home or professional studio. The system features a Remote Control Unit (RCU) and an Analog Control Unit (ACU) that connects via the included Cat5 cable. The RCU features a color graphical LCD display and dedicated tactile control over all functions that allows you to switch between a variety of input sources.
EAN: 823821090599
The black m905 Analog from Grace Design is a reference monitor controller designed to deliver mastering-quality monitoring to your home or professional studio. The system features a Remote Control Unit (RCU) and an Analog Control Unit (ACU) that connects via the included Cat5 cable. The RCU features a color graphical LCD display and dedicated tactile control over all functions that allows you to switch between a variety of input sources.

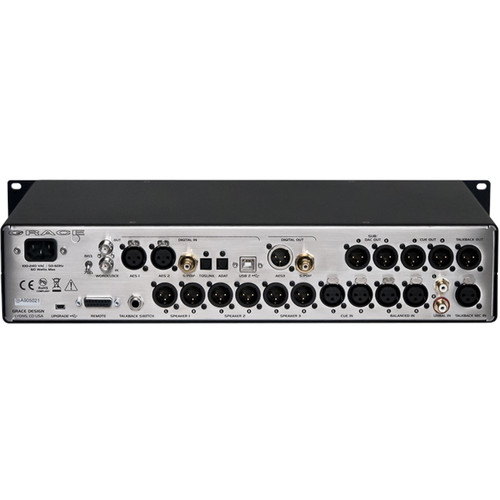

The ACU houses all analog connections including two pairs of balanced XLRs and one pair of unbalanced RCA inputs, as well as a balanced 1/4 headphone output. Additionally, the unit has three stereo pairs of balanced speaker outputs with two assignable mono sub outputs, giving you a versatile selection of monitoring options when mixing or mastering.
Note: The headphone output on the RCU is inoperable with the included Cat5 cable. A 25 serial cable is available as an upgrade, which allows the RCU headphone port to be fully functional.
Features
- Balanced and unbalanced analog inputs
- CUE & talkback mic
- Audio circuitry designed for transparent playback
- Hybrid RCU with hardware switches, large level encoder, and graphical LCD
- LCD display shows input, level, output, and SPL status plus a full calibration menu
- RCU includes built-in microphone for talkback and onboard SPL meter
- SPL meter features include level, peak, fast and slow modes, and A & C weighting
- Precision 0.5 dB step level control for speakers and headphones
- Reference headphone amplifier circuitry with outputs on ACU
- Dedicated mono, dim, mute, and sub mute switches
- Mono mode can be set to L+R summed, L only in both channels, or R only in both channels
- L solo, R solo, L-R, and sub solo modes available
- 3 available stereo speaker outputs, with 2 assignable mono sub outputs (or single stereo sub output)
- METER out mode fed by selected input signal, configurable with a fixed level or to follow the monitor level
- Detachable RCU tilt base
Grace Design M905 Specs
Analog I/O
| THD + N | At Maximum Volume, 1 kHz, 22 Hz to 22 kHz BW +20 dBu Out: <0.0008% +10 dBu Out: <0.0008% 0 dBu Out: <0.002% |
| Distortion | Intermodulation Distortion SMPTE / DIN 4:1 50 Hz, 7 kHz At +20 dBu Out: <0.002% At 0 dBu Out: <0.0015% |
| Frequency Response | Balanced Inputs +/-3 dB: 3 Hz to 1.25 MHz Unbalanced Input +/-3 dB: 3 Hz to 275 kHz |
| Dynamic Range | 20 to 22 kHz Bandwidth: 118 dB 20 to 22 kHz Bandwidth and A-Weighting Filter: 121 dB |
| Output Noise | 20 to 22 kHz Bandwidth, at -20 dB Gain: -99 dBu 20 to 22 kHz Bandwidth and A-Weighting Filter, at -20 dB Gain: -102 dBu |
| Deviation | Phase Deviation: 20 Hz to 20 kHz: <10° 10 Hz to 100 kHz: <19° |
| Cross Talk | Crosstalk Any Channel: 100 Hz: <104 dB 1 kHz: <100 dB 20 kHz: <79 dB |
| Balanced Input | For Balanced Input: 60 Hz: >90 dB 1 kHz: >85 dB 10 kHz: >70 dB |
| Gain Range | -104 dB to +13 dB |
| Channel | Channel Tracking Accuracy: +/-0.1 dB |
| Maximum Output Level | +26 dBu |
| Maximum Input Level | Balanced Inputs: +29 dBu Unbalanced Inputs: +21 dBu |
| Impedance | Balanced Inputs: 88 kOhms Unbalanced Inputs: 53 kOhms Balanced Outputs: 300 Ohms Minimum Load Impedance: 300 Ohms |
| Mic Pre Gain | External Talkback Mic Preamp Gain: +7 dB to +70 dB in 1 dB steps |
In the Box
- Grace Design m905 Analog Reference Monitor Controller (Black)
- Audio Control Unit (ACU)
- Remote Control Unit (RCU)
- RCU Tilt Base and Accompanying Hardware
- 25` Cat5 Cable
- 6` AC Power Cable
- Rubber Feet and Rack Screws
- 5-Year Manufacturer Warranty
