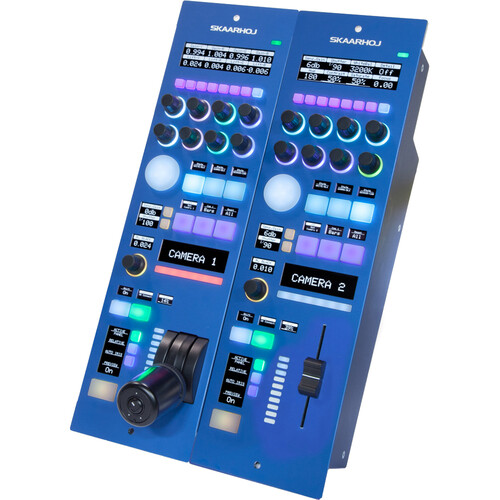

SKAARHOJ RCPv2 Joystick Controller
Control cinema cameras remotely with the SKAARHOJ RCPv2 Joystick Controller and its intuitive buttons, joystick, and OLED displays. Programmable buttons with RGB and OLED displays allow you to perform intuitive adjustments to functions of your choice. A classic iris joystick, pressure sensitive joystick pad, backlit encoder knobs, and various four-way buttons make up the remainder of the unit s controls.
Control cinema cameras remotely with the SKAARHOJ RCPv2 Joystick Controller and its intuitive buttons, joystick, and OLED displays. Programmable buttons with RGB and OLED displays allow you to perform intuitive adjustments to functions of your choice. A classic iris joystick, pressure sensitive joystick pad, backlit encoder knobs, and various four-way buttons make up the remainder of the unit s controls.
The controller has a compact form factor capable of integration with your preexisting rack or just sitting on your tabletop. An RJ45 Ethernet port connects to your IP network and offers PoE support. UniSketch OS software provides universal control. Included with the RCPv2 is a 12V power supply and a micro-USB programming cable for integration into your preexisting control setup.

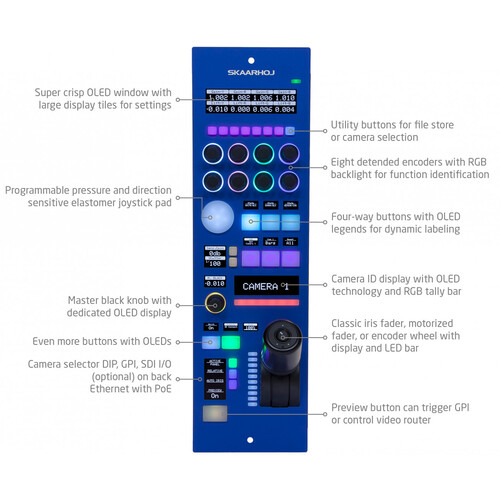

Features at a Glance
- Universal control of multiple third-party devices like Blackmagic Design Cameras
- Flexible user configuration
- IP-based remote control with PoE
- 12 OLED display screens
- 8 high-quality encoders with RGB backlights for function identification
- Pressure and direction sensitive joystick pad
- Camera ID display with OLED and RGB tally bar
- 8 four-way buttons with OLED legends
- Preview button for GPI or control of video router
- UniSketch OS
- Micro-USB programming port with included cable
- RJ45 Ethernet networking port
SKAARHOJ RCPv2 Specs
General
| Compatibility | Blackmagic Design |
Display
| Panel Type | OLED |
| Size | Not Specified by Manufacturer |
| Touchscreen | No |
Inputs / Outputs
| USB I/O | 1 x Micro-USB 2.0 Female Input |
| Video I/O | 1 x RJ45 Input/Output |
Wireless
| Wi-Fi | Yes |
Power
| Power Source | PoE, AC Adapter with Power Brick |
| DC Input Power | 12 VDC at 1.25 A |
| Power Consumption | 6.19 W |
Physical
| Color | Blue |
| Cable Length | 3.3` / 1 m (Micro-USB Cable) 4.9` / 1.5 m (Power Supply Cable) |
| Dimensions | 14 x 4 x 2.8" / 355 x 102 x 72 mm |
| Weight | 2.54 lb / 1.15 kg |
Packaging Info
| Package Weight | 3.99 lb |
| Box Dimensions (LxWxH) | 17.4 x 6.7 x 5.6" |
In the Box
- SKAARHOJ RCPv2 Joystick Controller
- Micro-USB to USB-A 2.0 Programming Cable (3.3`)
- 12V Power Supply
- 2-Year Manufacturer Warranty
