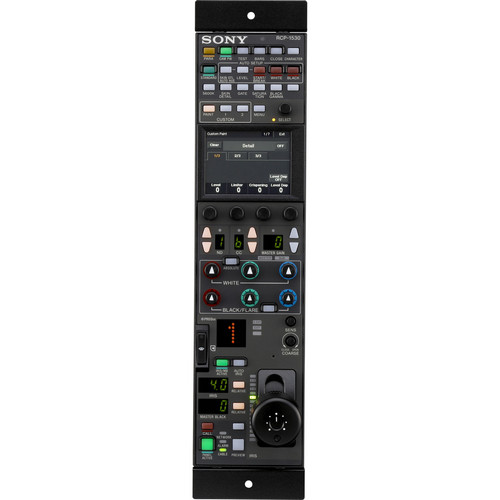

Sony RCP-1530 Slim Remote Control Panel (Joystick)
The Sony RCP-1530 Slim Remote Control Panel provides multifunctional operation of professional studio camcorders, using a joystick-type control for iris and master black adjustments. A touch-panel LCD display provides direct access to numerous control functions, while allowing the customization of frequently used settings and menus. At just over 3 wide, the RCP-1530 is compact enough that up to 5 units can be mounted in a single 19 rack.
Camera Operation via Touch Panel & Direct Access Switches
This remote control panel is equipped with the control functions required to perform various camera operations enabling the simple and accurate operation of various functions. The operation buttons, adjustment knobs, and other controls are arranged on the panel according to function and frequency of use. Guard frames are provided around buttons that are vital to the operation and setup of cameras to prevent the buttons from being unintentionally operated.
Ethernet Connection Capability
Connection by LAN and CCA-5 cable are both possible, allowing a multi-camera control system to be set up not only using the CNU-700, but also using a LAN.
Newly Added Narrow Design
At just 3.1 (8cm) wide, RCP-1530 allows you to mount up to five units in a 19 EIA rack.
Customizable Switch & Menu
Users can assign any function to a spare switch and make their own favorite menu as well.
Building of a Variety of Control Systems
HDC/HSC/BVP users can build a multi-camera control system through the use of the CNU-700. In a system that uses CNU-700s, two CNUs can be used to control a camera system of up to 24 cameras. A system that uses a LAN can also be built by connecting to a LAN-compatible CCU.
The Sony RCP-1530 Slim Remote Control Panel provides multifunctional operation of professional studio camcorders, using a joystick-type control for iris and master black adjustments. A touch-panel LCD display provides direct access to numerous control functions, while allowing the customization of frequently used settings and menus. At just over 3 wide, the RCP-1530 is compact enough that up to 5 units can be mounted in a single 19 rack.
Camera Operation via Touch Panel & Direct Access Switches
This remote control panel is equipped with the control functions required to perform various camera operations enabling the simple and accurate operation of various functions. The operation buttons, adjustment knobs, and other controls are arranged on the panel according to function and frequency of use. Guard frames are provided around buttons that are vital to the operation and setup of cameras to prevent the buttons from being unintentionally operated.
Ethernet Connection Capability
Connection by LAN and CCA-5 cable are both possible, allowing a multi-camera control system to be set up not only using the CNU-700, but also using a LAN.
Newly Added Narrow Design
At just 3.1 (8cm) wide, RCP-1530 allows you to mount up to five units in a 19 EIA rack.
Customizable Switch & Menu
Users can assign any function to a spare switch and make their own favorite menu as well.
Building of a Variety of Control Systems
HDC/HSC/BVP users can build a multi-camera control system through the use of the CNU-700. In a system that uses CNU-700s, two CNUs can be used to control a camera system of up to 24 cameras. A system that uses a LAN can also be built by connecting to a LAN-compatible CCU.
Sony RCP1530 Specs
| Input and Output Connectors | Ethernet: 8-pin RJ-45 x1 CCU/CNU: 8-pin Multi-connector (female) x1 EXT I/O: 9-pin D-Sub (female) x1 |
| Power Requirements | 10.5 - 30VDC |
| Power Consumption | 4W |
| Operating Temperature | 41°F - 104°F (5°C - 40°C) |
| Dimensions (WxHxD) | 3.25 x 12.25 x 5" (8 x 31 x 12.5 cm) |
| Weight | 3.5 lbs (1.6kg) |
In the Box
- Sony RCP-1530 Slim Remote Control Panel (Joystick)
- 2 Year Parts, 90 Days Labor Warranty
