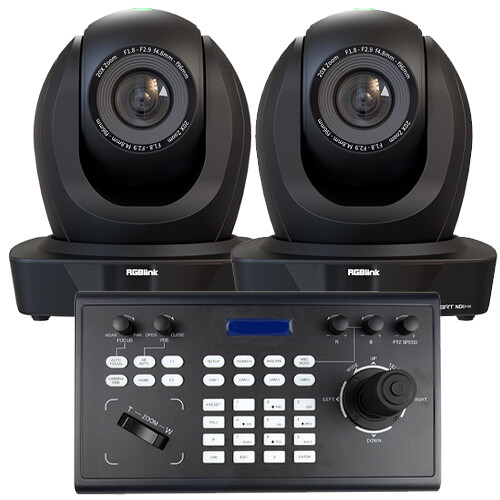

RGBlink vue HDMI/SDI/IP 1080p PTZ Camera with PoE & 20x Optical Zoom (Black)
Add a camera to your conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with this black vue HDMI/SDI/IP 1080p PTZ Camera with PoE & 20x Optical Zoom from RGBlink. The PTZ camera features resolutions up to 1080p60, and a 1/2.8 HD CMOS sensor. The built-in zoom lens has an optical zoom range of 20x, and you can zoom in further with the 10x digital zoom. The camera offers multiple video output options including HDMI, 3G-SDI, and RJ45 Ethernet RTSP with simultaneous dual streams.
The camera features 255 programmable preset positions and 10 presets on the included IR remote, you can set the camera to rapidly move between positions using IR control or the IP, RS-232, RS-422/RS-485 connectors with separately available controllers, and it can utilize UVC via its USB-A port for control from a computer. The camera compresses using H.264, or H.265, and you can transmit up to two streams at the same time using RTSP or RTMP protocols. The camera supports external audio input via a 3.5mm stereo line-level jack, and you can power the camera using the included AC adapter or via PoE (Power-over-Ethernet) on a supported network.
Tally Crown
Multi-Protocol Support
Set Presets
Precise Position Control
Remote Control
Power of Convenience
Audio Input
PTZ Park
Browser Config and Preview
Connect directly to a vue camera from any browser without the need to install a dedicated app. The web interface allows full configuration of the camera as well as preview of video, operations, and control.
RGBlink PTZ Camera Controller
The RGBlink PTZ Camera Controller allows you to control up to 255 cameras via Ethernet and serial connections. ONVIF, VISCA, Pelco-D, and Pelco-P protocols are supported. A joystick, knobs, and key controls allow the user to quickly switch between PTZ cameras and adjust the parameters. An LCD screen with a key tone is present on the front panel.
Features
Add a camera to your conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with this black vue HDMI/SDI/IP 1080p PTZ Camera with PoE & 20x Optical Zoom from RGBlink. The PTZ camera features resolutions up to 1080p60, and a 1/2.8 HD CMOS sensor. The built-in zoom lens has an optical zoom range of 20x, and you can zoom in further with the 10x digital zoom. The camera offers multiple video output options including HDMI, 3G-SDI, and RJ45 Ethernet RTSP with simultaneous dual streams.
The camera features 255 programmable preset positions and 10 presets on the included IR remote, you can set the camera to rapidly move between positions using IR control or the IP, RS-232, RS-422/RS-485 connectors with separately available controllers, and it can utilize UVC via its USB-A port for control from a computer. The camera compresses using H.264, or H.265, and you can transmit up to two streams at the same time using RTSP or RTMP protocols. The camera supports external audio input via a 3.5mm stereo line-level jack, and you can power the camera using the included AC adapter or via PoE (Power-over-Ethernet) on a supported network.
Tally Crown
Multi-Protocol Support
Set Presets
Precise Position Control
Remote Control
Power of Convenience
Audio Input
PTZ Park
Browser Config and Preview
Connect directly to a vue camera from any browser without the need to install a dedicated app. The web interface allows full configuration of the camera as well as preview of video, operations, and control.
RGBlink PTZ Camera Controller
The RGBlink PTZ Camera Controller allows you to control up to 255 cameras via Ethernet and serial connections. ONVIF, VISCA, Pelco-D, and Pelco-P protocols are supported. A joystick, knobs, and key controls allow the user to quickly switch between PTZ cameras and adjust the parameters. An LCD screen with a key tone is present on the front panel.
Features
- Supports multiple control and network protocols
- LCD screen on the front panel with key tone
- Control code modified by the customer
- Camera speed control via joystick
- Camera parameter adjustment via keys
- Multiple control connectors for up to 255 cameras
- PoE support
RGBlink vue HDMI/SDI/IP 1080p PTZ Camera with PoE & 20x Optical Zoom (Black) Specs
Imaging
| Image Sensor | 1/2.8"-Type CMOS |
| Sensor Resolution | Effective: 2.07 Megapixel |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
Exposure Control
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| White Balance | 3000 to 7000K |
Lens
| Focal Length | 4.8 to 96mm |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 10x |
| Field of View | Horizontal: 60.04 to 3.45° |
| Maximum Aperture | f/1.8 to 2.9 |
Video Capture
| External Recording Modes | SDI/BNC / HDMI / RJ45 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 25/29.97/50/59.94 fps |
| Broadcast Output | |
| IP Streaming | H.264, H.265, RTMP, RTSP 1920 x 1080 1280 x 720 |
| IP Multi-Stream Support | Simultaneous H.264, H.265: 1080p, 720p, 360p |
Control
| Presets | 255 via IR, RS-232, VISCA |
| Move Speed | Pan: 0.1 to 60°/sec Tilt: 0.1 to 30°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | IP IR Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA |
Interface
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x RJ45 Output 1 x USB-A 2.0 Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1 x Block 2-Pin (RS-422, RS-485) Input/Output 1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output 1 x RJ45 (LAN) Input |
Power
| PoE Support | PoE 802.3af |
| Power I/O | 1 x Barrel (12VDC at 1.5 A) Input |
| Power Consumption | Device: 12 VDC 12 W |
Environmental
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Operating Humidity | 20 to 80% |
General
| Dimensions (W x H x D) | 7.4 x 7.8 x 7.1" / 18.8 x 19.8 x 18 cm |
| Weight | 60.0 oz / 1.7 kg |
Packaging Info
| Package Weight | 6.215 lb |
| Box Dimensions (LxWxH) | 11.1 x 9.9 x 9.5" |
RGBlink PTZ Camera Controller Specs
General
| Number of Supported Cameras | 255 Channels |
| Supported Control Protocols | Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA |
| Control I/O | 1 x DE-15/DB-15 (RS-232) 1 x RJ45 (LAN) |
| Other I/O | 1 x Unspecified Interface (RS-422, RS-485) |
| Controls | 1 x Zoom, Multifunction Joystick 5 x Knobs Keys |
Power
| PoE Support | Yes |
| Power Consumption | 0.6 W |
| DC Input Power | 12 VDC |
Environmental
| Operating Temperature | 32 to 82°F / 0 to 50°C |
| Operating Humidity | 0 to 90% |
Physical
| Security Lock Support | None |
| Dimensions | 12.6 x 7.1 x 3.9" / 320 x 180 x 100 mm |
Packaging Info
| Package Weight | 5.03 lb |
| Box Dimensions (LxWxH) | 14.1 x 8.8 x 5.7" |
In the Box
- IR Remote Control
- Power Adapter
- RS-232 Cable
- 2-Year Manufacturer Warranty
- 2 x Cat 6 Cable
- Hard Carrying Case
