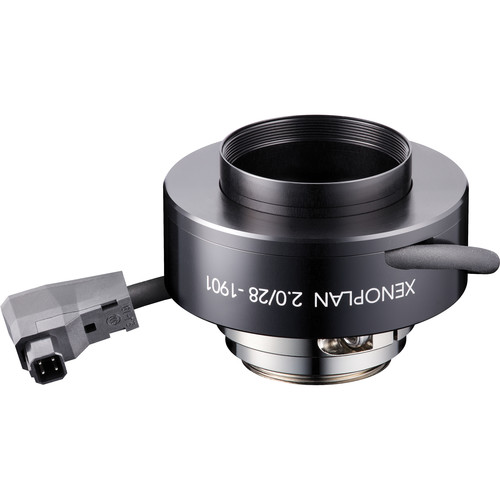

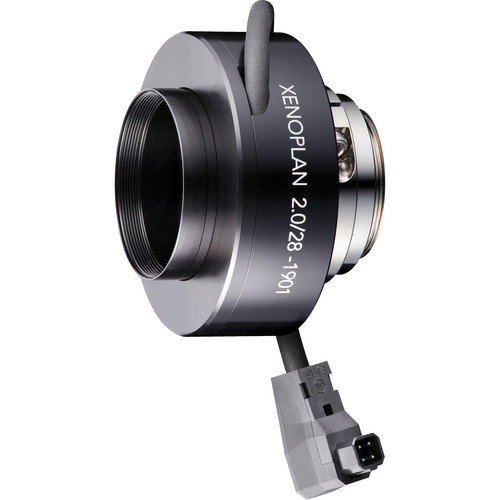

Schneider Xenoplan C-Mount 4MP F2.0 28mm P-Iris Lens
The Xenoplan C-Mount 4MP F2.0 28mm P-Iris Lens from Schneider is used with 1/3 CCD and CMOS sensors. The lens is corrected and broadband-coated for the spectral range of 400 to 1000 nm (VIS + NIR). The robust mechanical design with lockable focus and iris setting mechanism ensures reliable continuous use even in extreme conditions.
Used with 1/3 CCD and CMOS sensors
Broadband coating (400 to 1000 nm)
Compact and lightweight
Vibration insensitivity for stable imaging performance
Focus and iris setting lockable
Used with machine vision and other imaging applications, 3D measurement, traffic, medical, robot vision, food processing
The Xenoplan C-Mount 4MP F2.0 28mm P-Iris Lens from Schneider is used with 1/3 CCD and CMOS sensors. The lens is corrected and broadband-coated for the spectral range of 400 to 1000 nm (VIS + NIR). The robust mechanical design with lockable focus and iris setting mechanism ensures reliable continuous use even in extreme conditions.
Used with 1/3 CCD and CMOS sensors
Broadband coating (400 to 1000 nm)
Compact and lightweight
Vibration insensitivity for stable imaging performance
Focus and iris setting lockable
Used with machine vision and other imaging applications, 3D measurement, traffic, medical, robot vision, food processing
Schneider Xenoplan Specs
| F-Number (f) | 2.0 |
| Focal Length | 28 mm |
| Image Circle | 22 mm |
| Transmission | 400 to 1000 nm |
| Mount Type | C-Mount |
| Dimensions | 1.33 x 1.49" (34 x 38 mm) |
| Weight | 2.75 oz (78 g) |
In the Box
- Schneider Xenoplan C-Mount 4MP F2.0 28mm P-Iris Lens
- 2 Years Manufacturer Warranty
