SKAARHOJ Live Fly Controller with Blue Pill Inside and NKK Buttons

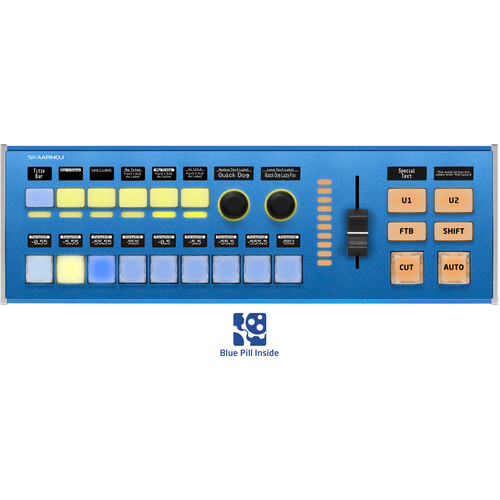

Run your up-to-eight-camera productions from the Live Fly with Blue Pill and NKK Buttons from SKAARHOJ. This professional midsize controller s interface includes nine programmable four-way buttons with OLED displays, six four-way audio buttons with RGB multilevel metering LEDs and OLED displays, two encoder knobs with OLED displays, a transition fader with an RGB LED bar, and an ME section with multilevel shift and user keys and two OLED displays. Integrated into the Live Fly controller is a Blue Pill unit with skaarOS control.
Run your up-to-eight-camera productions from the Live Fly with Blue Pill and NKK Buttons from SKAARHOJ. This professional midsize controller s interface includes nine programmable four-way buttons with OLED displays, six four-way audio buttons with RGB multilevel metering LEDs and OLED displays, two encoder knobs with OLED displays, a transition fader with an RGB LED bar, and an ME section with multilevel shift and user keys and two OLED displays. Integrated into the Live Fly controller is a Blue Pill unit with skaarOS control.
PoE technology simplifies setup by enabling signals and power to travel via a single cable. The Live Fly s modular design enables you to repurpose, extend, integrate, and configure the controller to fit a variety of applications. Compatible devices include vMix, Tricaster, and ATEM Vectar systems.
Features at a Glance
- Universal control of multiple third-party devices
- Flexible user configuration
- IP-based remote control, PoE
- RGB multi-level metering LEDs for VU, tally, or step indication
- Precision encoders for adjusting settings for selecting graphics
- Transition fader with RGB LED bar for transition position or VU metering
- Versatile bus delegation row with display labels
- Programmable 4-way buttons for superior flexibility
- ME section with multi-level shift and user keys
- Slim, ergonomic console form factor
- RJ45 Ethernet port with PoE IEEE802.3at
- skaarOS with integrated Blue Pill
SKAARHOJ LIVE-FLY-N Specs
Display
| Panel Type | OLED |
| Size | Not Specified by Manufacturer |
| Touchscreen | No |
Inputs / Outputs
| USB I/O | 1 x Micro-USB Female Input |
| Video I/O | 1 x RJ45 Input |
Wireless
| Wi-Fi | Yes |
Power
| Power Source | AC Adapter with Power Brick (Included), PoE |
| DC Input Power | 12 VDC |
| Power Consumption | 4.32 W |
Physical
| Cable Length | 4.9` / 1.5 m (Power Supply) |
| Dimensions | 10.9 x 3.7 x 2.2" / 278 x 94 x 55 mm |
| Weight | 20.9 oz / 592 g |
In the Box
- SKAARHOJ Live Fly Controller with Blue Pill Inside and NKK Buttons
- 12V Power Supply (4.9`)
- 2-Year Manufacturer Warranty
