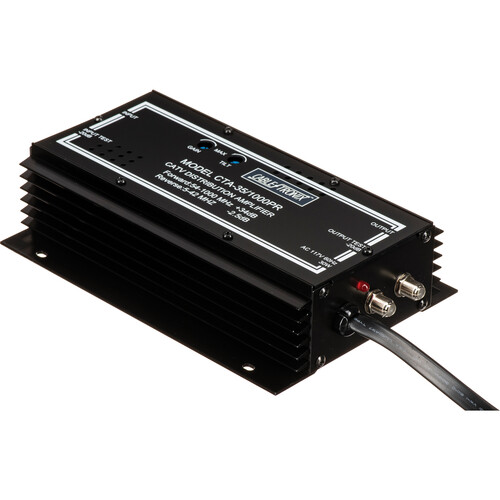

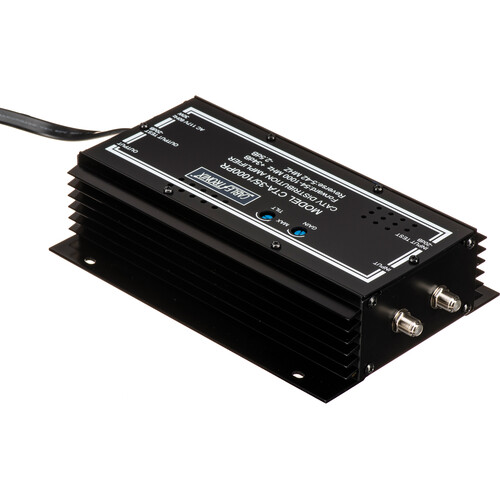

CableTronix CTA-35/1000PR CATV Distribution Amplifier
EAN: 819210011986
The CableTronix CTA-35/1000PR CATV Distribution Amplifier is a wall-mountable amplifier with a 16 dB gain-control range. In addition to CATV signals, this amplifier is also compatible with UHF and VHF signals. Built-in input and output test ports ensure that you can adjust the amplifier to fine-tune performance without disconnecting it from your infrastructure.
EAN: 819210011986
The CableTronix CTA-35/1000PR CATV Distribution Amplifier is a wall-mountable amplifier with a 16 dB gain-control range. In addition to CATV signals, this amplifier is also compatible with UHF and VHF signals. Built-in input and output test ports ensure that you can adjust the amplifier to fine-tune performance without disconnecting it from your infrastructure.
CableTronix CTA-35 Specs
| Frequency Range | Forward: 54 - 1,000 MHz Reverse: 5 - 42 MHz |
| Power Requirement | 117 VAC, 60 Hz |
| Forward Path | Gain: 35 dB @ 54-550 MHz, 34 dB @ 551-1,000 MHz Flatness: ±1.0 dB @ 54-870 MHz Gain Control Range: 16 dB Tilt Control Range: 15 dB Noise Figure: 6 dB @ 54-1,000 MHz Return Loss: -10 dB Input, -10 dB Output Composite Triple Beat: -60 dBc Composite Second Order: -60 dBc Input Test Point: -20 dB ±3 dB Output Test Point -20 dB ±3 dB |
| Return Path | Gain: -2.5 dB Flatness: ±1.0 dB Noise Figure: 6 dB Return Loss: -10 dB Input/Output |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Connectors | F Type female |
| Impedance | 75 Ohms |
| Dimensions | 8.9 x 5.3 x 2.1" / 225 x 135 x 52 mm |
| Weight | 3 lb / 1.4 kg |
In the Box
- CableTronix CTA-35/1000PR CATV Distribution Amplifier
- 2 Years Manufacturer Warranty
