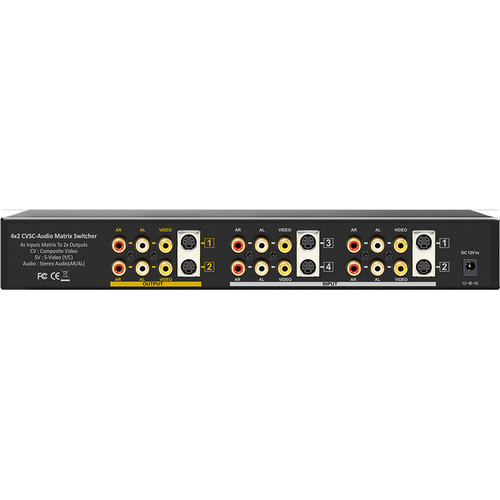

Shinybow 4x2 Composite/S-Video/Audio Matrix Routing Switcher
The SB-5450M 4x2 Composite/S-Video/Audio Matrix Routing Switcher from Shinybow supports resolutions up to 1080p and features four inputs and two outputs for S-Video, composite video, and stereo RCA audio. Because it is a matrix switcher, any of the inputs can be routed to any of the outputs, making it well suited for multi-display installations. It is 1 RU in height and is mountable in standard 19 racks using optional rack ears (sold separately). Control is provided via front selection push buttons with LED readout, or infrared remote controller.
Key Features
The SB-5450M 4x2 Composite/S-Video/Audio Matrix Routing Switcher from Shinybow supports resolutions up to 1080p and features four inputs and two outputs for S-Video, composite video, and stereo RCA audio. Because it is a matrix switcher, any of the inputs can be routed to any of the outputs, making it well suited for multi-display installations. It is 1 RU in height and is mountable in standard 19 racks using optional rack ears (sold separately). Control is provided via front selection push buttons with LED readout, or infrared remote controller.
Key Features
- Matrix switcher with four inputs and two outputs
- Each input/output offers S-Video, composite RCA video, and stereo RCA audio (AR/AL) connections
- Supports 480i, 480p, 576p, 720p, 1080i, and 1080p TV resolutions
- 100 MHz (-3 dB), 200 mVpp video bandwidth
- 30 MHz audio bandwidth
- 20 Hz to 20 kHz audio frequency response
- Scan rates accepted for 50 Hz or 60 Hz
- IR remote control (38 kHz frequency)
- Front panel control via selection channel push buttons with LED readout
- Rack-mountable 1 RU with separately available rack ears
- Low power consumed full load under 250mAh
- 100 to 240 VAC universal power supply included
Shinybow SB-5450 Specs
| Inputs | Video: 4 x S-Video 4 x Composite RCA Audio: |
| Outputs | Video: 2 x S-Video 2 x Composite RCA Audio: |
| Video Bandwidth | 100 MHz, -3 dB, 2 Vpp |
| Audio Bandwidth | 30 MHz, -3 dB Audio-Right: 30 MHz / Audio-Left: 30 MHz |
| Audio Frequency Response | 20 Hz to 20 kHz |
| All Hostile Crosstalk | -56 dB at 5 MHz / -45 dB at 50 MHz |
| Scan Rates Accepted | 50 Hz or 60 Hz |
| IR Infrared Frequency | 38 kHz |
| Safety Approvals | CE, FCC, VCCI, Erp, WEEE |
| Power Voltage Input | 12 VDC, 1 A |
| Power Adapter | 100 to 240 VAC, 50/60 Hz |
| Dimensions | 12.0 x 6.1 x 1.7" (30.4 x 15.4 x 4.4 cm) |
| Weight | 3.1 lb (1.4 kg), with metal case |
In the Box
- Shinybow 4x2 Composite/S-Video/Audio Matrix Routing Switcher
- IR Remote Control
- RCA A/V Cable
- S-Video Cable
- Power Supply
- 3-Year Manufacturer Warranty
