The Shinybow SB-5684K 8 x 4 UHD 4K HDMI Matrix Switcher allows you to route 8 HDMI inputs to 4 HDMI outputs with one preview output in different configurations. Any input can be routed to any output, to all outputs, or to a combination of outputs. All outputs feature a built-in video booster, which makes them capable of sending 1080p video over cable lengths of up to 98 and 4K2K video up to 66 .
The switcher supports resolutions up to 4K, including 1080p/i, and 3D video, and up to 36-bit color depth. It also features 8 modes of EDID management (7 embedded and 1 external). Routing selections can be controlled via the front panel, included remote control, RS-232 serial control, or Ethernet (via a controller). An RS-232 Windows GUI interface is included for RS-232 control. An IR Extender Receiver Set supporting 984 of IR distance is included for remote control of the switcher from the room with the displays. A rackmount set is supplied for installing the switcher in a 1 RU 19 rack.
The HDMI connections support 5.1 and 7.1 channel surround sound audio, MAT (MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Digital Plug/ex, DTS, DTSES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, DTS-EX, PCM, PCM2, and LPCM2.

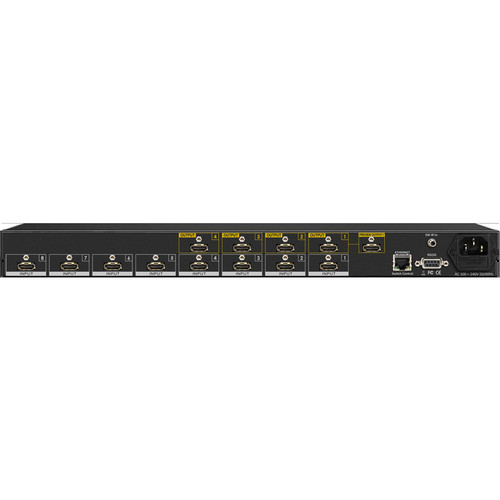

Eight HDMI inputs
Four HDMI outputs with one preview output
HDMI digital video with embedded HDCP, DVI formats, and CEC/HDCP 1.3 compliance
Worldwide EDID control modes for HDMI full 4K2K (24/30 Hz) HD video resolutions
Wide frequency range of 25 to 340 MHz
Supports HDMI 4K2K and 1.4a 3D formats
Supports a wide range of HD resolutions from PC XGA to WUXGA 1920 x 1200 and HDTV/DTV HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i/p, and 4K2K (24/30 Hz)
Compatible with all HDMI source devices, PC monitors, plasma HD displays, HDTVs, and audio receivers or audio amplifiers
Digital video TMDS formats resolutions up to 4K2K with 36-bit color depth
Front panel push button
IR wireless remote control
Ethernet switch control
Third-party RS-232 control (via simple ASCII)
Supports seven worldwide control function keys

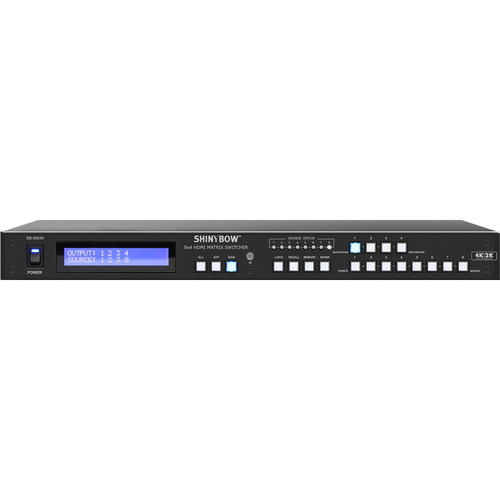

Full Function Front Panel Controls: ALL / OFF / EDID / LOCK / RECALL / MEMORY / ENTER
Embedded EDID Modes: FSS / H24-3D / H24-3D-M / H36-3D / H36-3D-M / 4K2K-3D / DVI-D 1920 x 1200 60 Hz
External Modes: Learning mode-1 (Single Learning) and Learning mode-2 (Multiple Learning)
Automatic scanning of input and output status via LCM display on the front panel
Supports Universal 100 to 240 VAC / (50/60 Hz) power adapter
Shinybow SB-5684 Specs
| Input | 8 x HDMI (HDMI or DVI digital source) HDMI Type A: SMD 19-pin female type |
| Output | 4 x HDMI: With Booster output 1080p up to 98` (30 n) & 4K2K up to 66` (20 m) HDMI Type A: SMD 19-pin female type |
| HDMI Support | HDMI 4K2K at 30 Hz, 1080p at 60 Hz, H36-bit deep color, 3D of HDMI V1.4 formats |
| HDCP/CEC Support | HDCP 1.3 compliant, CEC compliant |
| Video Bandwidth | Wide frequency 25 to 340 MHz |
| Digital Video Support | HD: 480i/480p/720p/1080i/1080p and 4K2K up to 36-bit deep color |
| Supported Audio | 5.1 and 7.1 channel surround sound audio, MAT (MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Digital Plug/ex, DTS, DTSES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, DTS-EX, PCM, PCM2, and LPCM2 |
| Preview Output | 1 (same as output #1) |
| GUI | Windows based GUI control via RS-232 interface (2000/XP/Windows 7 32-bit/Windows 7 64-bit/Windows 8) |
| Switch Controls | 1 x Select & Function buttons on front panel (data status via LCM panel) 1 x IR remote controller (included) 1 x 3.5 mm IR external input 1 x RS-232 series interface (switch control) 1 x Ethernet series interface (switch control) |
| Source Selection | Input status LEDs indicates presence of a live signal |
| Function Keys | 19 1. ALL, 2. OFF, 3. RECALL, 4. ENTER, 5. MEMORY, 6. LOCK, 7. EDID, 8. Destination button 1 thru 4, 9. Source button 1 thru 8 |
| EDID Modes | Select Embedded EDID Modes: Mode 1: FSS; Mode 2: H24-3D; Mode 3: H24-3D-M; Mode 4: H36-3D; Mode 5: H36-3D-M; Mode 6: 4K2K-3D, PCM-2CH; Mode 7: DVI-D 1920 x 1200 60 Hz |
| Infrared Frequency | 38 kHz |
| IR Distance | Up to 984` (300 m) |
| Booster | Video Booster: HDMI output 1080p lengths up to 98` (30 m) / 4K2K up to 66` (20 m) |
| Power | 100 to 240 VAC 50/60 Hz 120 VAC, 0.5 A, 60 W 220 VAC, 0.27 A, 60 W |
| Operating Temperature | 32 to 100°F (0 to 38°C) |
| Safety Approvals | CE, FCC, RoHS, REACH |
| Rack Height | 1 RU |
| Dimensions | 17.5 x 12 x 1.75" (444.5 x 304.8 x 44.45 mm) |
| Weight | 7.7 lb (3.5 kg) |
In the Box
- Shinybow SB-5684K 8 x 4 UHD 4K HDMI Matrix Switcher
- SW-5684K Master Wireless IR Remote Control
- 19" Rack Mount Ears/Brackets
- RS-232 Cable (6.5`)
- HDMI Locking Post Replacement Screws
- 100 to 240 VAC, 50/60 Hz Universal Power Supply
- 3-Year Manufacturer Warranty
