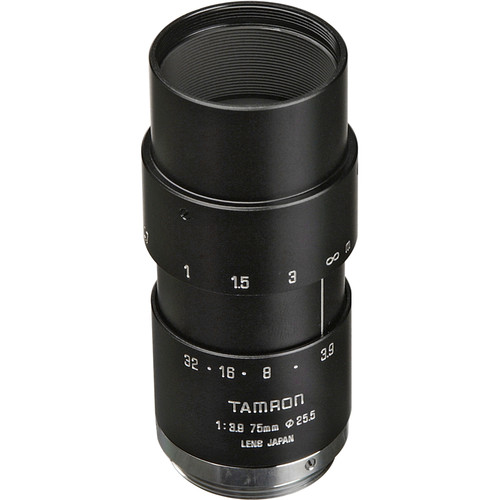

Tamron 23FM75-L 75mm f/3.9 High Resolution C-Mount Lens with Lock
EAN: 725211919605
Built for factory automation and machine vision applications, Tamron s 23FM75-L lens features a screw mechanism to lock-in the focus and iris rings and is ideal for use in an environment experiencing long periods of frequent vibrations. Utilizing a compact body with superior optics, this high resolution lens is designed to fit today s machinery dimensions and needs only a minumum focusing range of 0.5m to achieve outstanding quality.
Lock Mechanism
Features a screw type mechanism to lock-in the iris and focus ring enabling installation in conditions with frequent vibrations.
Solid Mechanism
Specifically designed for use with factory automation and machine vision apparatus, this solid mechanism lens is built to endure long periods of factory operation.
Compact
Features a compact design to fit the dimensional requirements of today s machinery.
Closer MOD
Uses superior optics and an advanced mechanical construction to achieve a Minimum Object Distance of less than 0.5m.
Uniform Filter Size
With a uniform filter size of M25.5 PO.5, this lens readily accepts UV, polarizer, red, green and blue filters.
EAN: 725211919605
Built for factory automation and machine vision applications, Tamron s 23FM75-L lens features a screw mechanism to lock-in the focus and iris rings and is ideal for use in an environment experiencing long periods of frequent vibrations. Utilizing a compact body with superior optics, this high resolution lens is designed to fit today s machinery dimensions and needs only a minumum focusing range of 0.5m to achieve outstanding quality.
Lock Mechanism
Features a screw type mechanism to lock-in the iris and focus ring enabling installation in conditions with frequent vibrations.
Solid Mechanism
Specifically designed for use with factory automation and machine vision apparatus, this solid mechanism lens is built to endure long periods of factory operation.
Compact
Features a compact design to fit the dimensional requirements of today s machinery.
Closer MOD
Uses superior optics and an advanced mechanical construction to achieve a Minimum Object Distance of less than 0.5m.
Uniform Filter Size
With a uniform filter size of M25.5 PO.5, this lens readily accepts UV, polarizer, red, green and blue filters.
Tamron 23FM Specs
| Lens Mount | C |
| Sensor Compatibility | 2/3" |
| Focal Length | 75mm |
| Back Focal Length | 27.115mm |
| Angle of View | 1/3"-Type Sensor Horizontal: 3.5° Vertical: 2.5° 1/2"-Type Sensor Horizontal: 5° Vertical: 3.5° 2/3"-Type Sensor Horizontal: 6.9° Vertical: 5.2° |
| Minimum Focus Distance | From Front of Lens: 19.7" / 0.5 m |
| Focus Type | Manual Focus |
| Iris Type | Manual |
| Effective Diameter | Front: 0.724409448818898" / 18.4 mm Rear: 0.421259842519685" / 10.7 mm |
| Filter Thread | M25.5 x 0.5 mm |
| Dimensions ( x L) | 1.1 x 2.6" / 29 x 65.5 mm |
| Weight | 2.4 oz / 68 g |
Packaging Info
| Package Weight | 0.21 lb |
| Box Dimensions (LxWxH) | 3.8 x 1.85 x 1.8" |
In the Box
- Tamron 23FM75-L 75mm f/3.9 High Resolution C-Mount Lens with Lock
- 2-Year Manufacturer Warranty (Parts and Labor)
