Reolink NVS8-5KD4-A 8-Channel 4K UHD NVR with 2TB HDD & 4 10MP Night Vision Dome Cameras
Monitor your home or business with the NVS8-5KD4-A 8-Channel 4K UHD NVR with 2TB HDD & 4 10MP Night Vision Dome Cameras from Reolink. Equipped with two SATA ports that each support storage of up to 6TB, this NVR has a total storage capacity of up to 12TB (2TB preinstalled). Space-saving H.265 and H.264 video compressions reduce bandwidth requirements for efficient data storage while maintaining the best quality possible.
Monitor your home or business with the NVS8-5KD4-A 8-Channel 4K UHD NVR with 2TB HDD & 4 10MP Night Vision Dome Cameras from Reolink. Equipped with two SATA ports that each support storage of up to 6TB, this NVR has a total storage capacity of up to 12TB (2TB preinstalled). Space-saving H.265 and H.264 video compressions reduce bandwidth requirements for efficient data storage while maintaining the best quality possible.
The included IP66-rated 10MP dome cameras each feature a 4mm fixed lens that delivers a 91° horizontal field of view, 100 of night vision, and a built-in microphone to pick up audio.
NVR Features
H.265 and H.264 video codecs
HDMI and VGA video outputs
2TB HDD preinstalled
2 x SATA ports for up to 12TB storage capacity (6TB maximum per HDD)
100M self-adaptive RJ45 Ethernet port
8 x PoE ports
2 x USB 2.0
RCA audio output
Compatible with Windows, macOS, iOS, Android, Edge, Chrome, Firefox, and Safari
Dome Camera Features
IR cut filter for day and night switching
Reolink app for iOS and Android enables remote viewing and management
Built-in microphone
H.265 video codec
Motion, human, and vehicle detection
Reolink NVS8-5KD4-A Specs

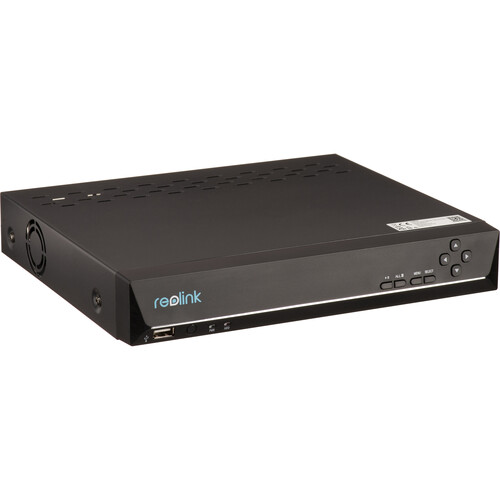

NVR
| IP Video Input | 8 x PoE |
| Audio Input | Cameras with Built-In Microphone |
| Video Output | VGA, HDMI |
| Display Resolution | HDMI: 4096 x 3072, 3840 x 2160, 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768 VGA: 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 800, 1280 x 720, 1024 x 768 |
| Audio Output | 1-Channel, RCA |
| Video Codecs | H.265, H.264 |
| Live View / Playback Resolution | 4096 x 3072, 3840 x 2160, 2560 x 1920, 2560 x 1440, 2048 x 1536, 2304 x 1296, 1920 x 1080, 1280 x 720 |
| Synchronous Playback | Up to 4 Channels |
| SATA | 2 x SATA Interface (1 x Seagate 2 TB HDD Included) |
| Capacity | Up to 12 TB (Maximum 6 TB Capacity per HDD) |
| USB Interface | 2 x USB 2.0 |
| Network Interface | 1 x 100M RJ45 Self-Adaptive Ethernet Interface for LAN/WAN 8 x 100M RJ45 Self-Adaptive PoE Ethernet Interface for IP Cameras |
| PoE Power | Maximum 25 W per Port |
| PoE Standard | 802.3af/at |
| Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Supported Browsers | Edge, Firefox, Chrome, Safari |
| Supported OS | Windows, macOS, iOS, Android |
| Maximum User Access | 20 Users (1 Admin Account & 19 User Accounts), Supports up to 12 Simultaneous Video Streams (10 Sub-Streams & 2 Main Streams) |
| Power Supply | 48 VDC, 1.87 to 2.5 A |
| Power Consumption | <10 W (without HDD & PoE) |
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| Operating Humidity | 10 to 90% |
| Dimensions | 10.2 x 1.6 x 9.1" / 260 x 41 x 230 mm |
| Weight | 3.1 lb / 1.4 kg |

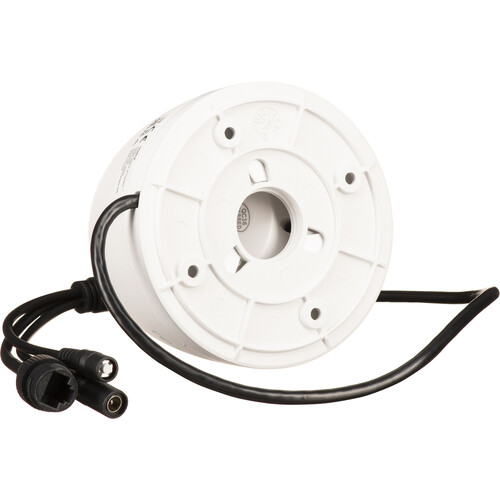

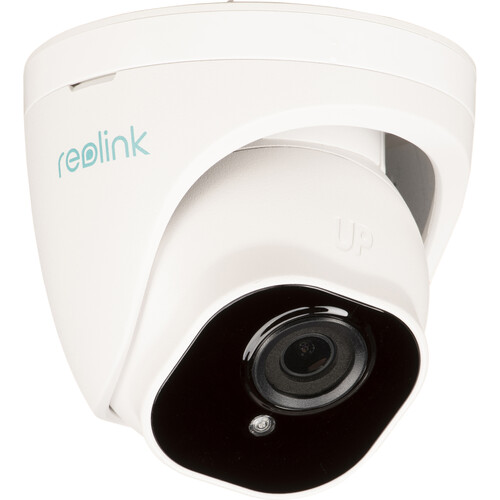

Dome Camera
| Image Sensor | 1/2.49" CMOS Sensor |
| Video Resolution | 4096 x 2512 at 15 fps |
| Lens | 4.0mm |
| Aperture | f/2.0 |
| Video Codec | H.265 |
| Field of View | Horizontal: 91° Vertical: 50° |
| Day and Night | Auto-Switching IR Cut Filter |
| Night Vision | 100` / 30 m |
| Number of IR LEDs | 18 x 850 nm |
| Audio | Built-In Microphone for Audio Recording |
| Frame Rate | Main Stream: 2 to 15 fps (15 fps Default) Sub-Stream: 4 to 15 fps (10 fps Default) |
| Code Rate | Main Stream: 3072 to 8192 kb/s (8192 kb/s Default) Sub-Stream: 128 to 1228 kb/s (1024 kb/s Default) |
| Smart Alarm | Motion, Human & Vehicle Detection |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
| IP Rating | IP66 |
| Dimensions | 4.1 x 3.7" / 105 x 95 mm |
| Weight | 1 lb / 467.5 g |
Packaging Info
| Package Weight | 14.5 lb |
| Box Dimensions (LxWxH) | 20.3 x 17.8 x 12.8" |
In the Box
- Reolink NVS8-5KD4-A 8-Channel 4K UHD NVR with 2TB HDD & 4 10MP Night Vision Dome Cameras
- NVR
- 4 x Dome Cameras
- Mouse
- 4 x Waterproof Lids
- 4 x 3.3` Ethernet Cables
- Mounting Hole Template
- Surveilance Sign
- Pack of Screws
- 2-Year Manufacturer Warranty
